Overview

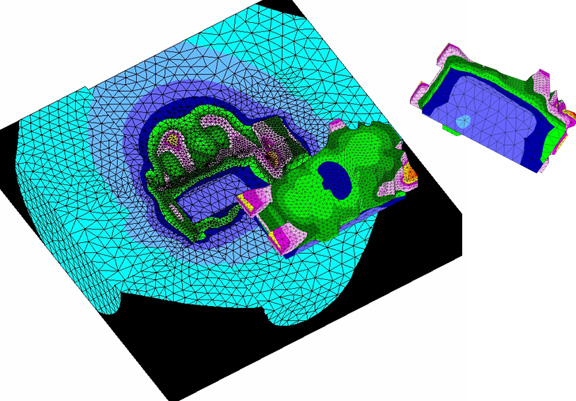

dieCAS® Software is for
process modeling and analysis of die casting and related processes,
including permanent mold, semi-permanent mold, and squeeze casting.
The capabilities of dieCAS software are:
-
Cavity fill, including full coupling
with heat transfer, back pressure from the cavity gas, venting,
and vacuum.
-

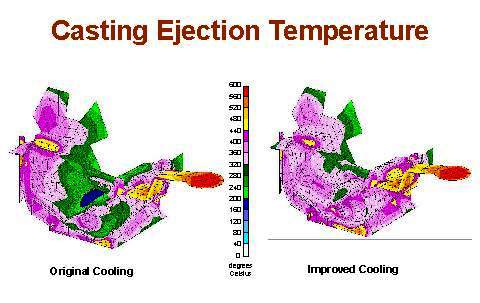

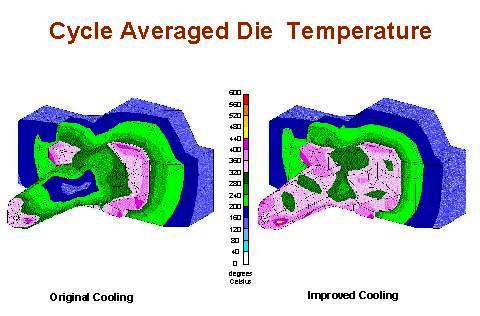

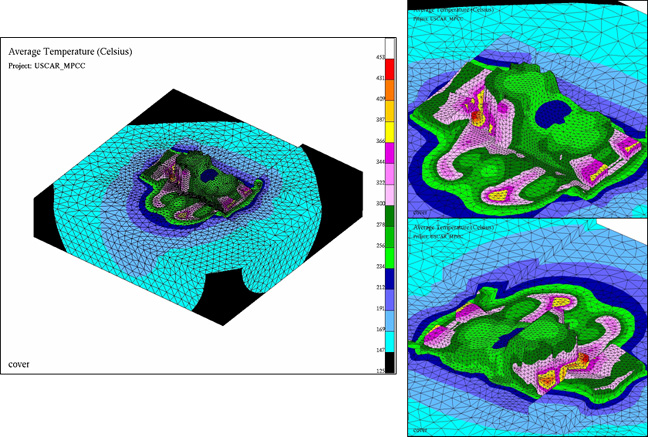

Heat transfer & solidification,
including solidification times, die temperatures, and casting
temperatures.
-
Casting distortion, including
thermal shrinkage following ejection from the die and associated
residual stress.
-
Die distortion, including nonuniform
thermal expansion, clamping forces of the die casting machine,
cavity pressure, and uneven contact between die components at
the parting surface.
|
Features
- Cavity fill, including full coupling with heat transfer,
back pressure from the cavity gas, venting, and vacuum.
- Heat transfer and solidification, including solidification
times, die temperatures, and casting temperatures.
- Casting distortion, including thermal shrinkage following
ejection from the die and associated residual stress.
-
