PASSAGE® /DieThermal Software
PASSAGE /DieThermal is a PC / Workstation based CAE
software for modeling and thermal analysis of dies used in stamping,
casting, injection and compression molding and related processes. It
provides analysis of the heating/cooling of the die and optimizes the
location of the heating/cooling elements and their operating schedule.
The capabilities of PASSAGE /DieThermal software are:
Heating Line Design for a Stamping Die

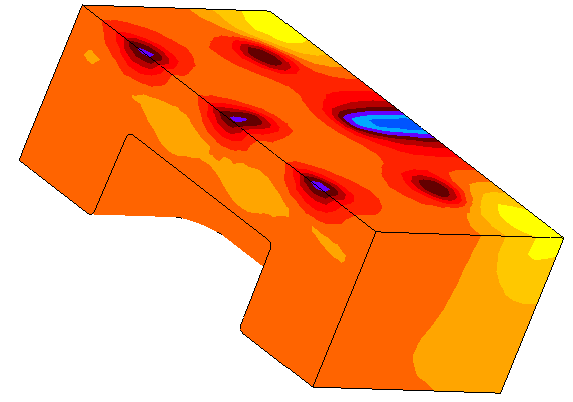

Temperature Distribution

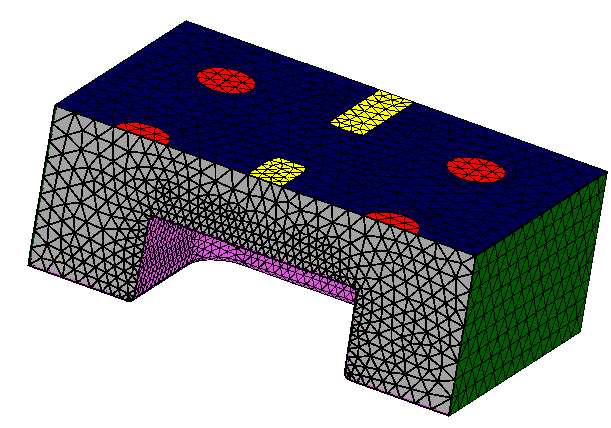

Finite Element Mesh

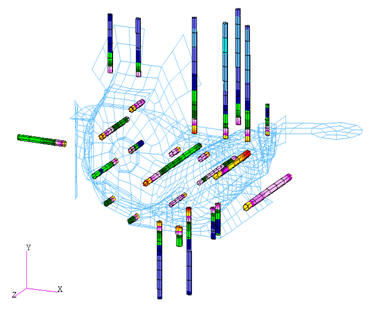

Cooling Line Design for a Die-cast Part
