PASSAGE®/SYSFLOW
|
Overview
- PASSAGE®/SYSFLOW is a one
dimensional (1D) computational fluid dynamics software
for the prediction of flow network performance and system design
and analysis.
- PASSAGE®/SYSFLOW provides very useful information in
understanding the flow splits in branched flow passages and the
overall heat fluxes between components.
- Using 1D computational fluid flow software is a very efficient and a
relatively inexpensive tool for system analysis and design.
- PASSAGE/SYSFLOW program is fast, user-friendly and
effectively predicts performance in a variety of user-defined
networks.
- Steady state, compressible and incompressible flow network
problems can be solved including heat transfer effects.
- Virtually any flow network system and/or sub-system can be
modeled using combinations of components included in the
standard library.
- A numerical model such as PASSAGE/SYSFLOW fluid flow
program as a design and analysis tool serves as an invaluable
tool to study the flow and heat-transfer in complex systems and
to optimize the design process in a more cost effective and
timely fashion.
|
Features:

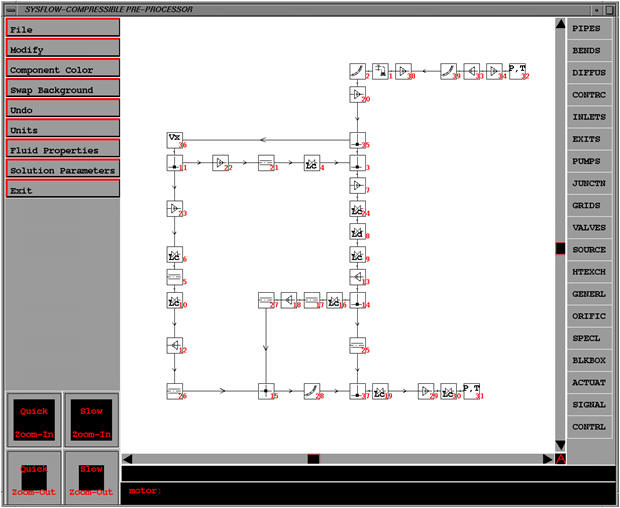

- An X-Windows based graphical User Interface provides a
user-friendly environment to build networks by interactively
adding various components.
- Existing components and their associated properties can be
modified, deleted and moved easily to change the network
characteristics or to build new networks from existing ones.
- The Post-Processor is a powerful graphical tool for the
result interpretation of pressure, velocity, temperature and
density.
- Components:
- Sources - fixed pressure or flows, pumps, fans
- Pipes - different geometries
- Fittings - contractions, expansions, bends, & junctions
- Valves - proportional, relief
- Heat Exchangers
- Filters
|
Some Application Areas
- Automotive HVAC systems
- Power tools
- Appliances
- Electric motors and generators
- piping networks
- Engine coolant system analysis
- Hydraulic system dynamics
- Automatic transmission control valve design
- Oil pressure regulating valve dynamics
- Fuel injector design
- Emission control flow regulation
- Braking system circuit analysis
- Utilities
|
Benefits
- Fluid Flow modeling -Network modeling
- Entire systems can easily be modeled
- Models can be created early in the design cycle to detect
potential problems
- Models can easily be changed
- Reduced solution time
- Powerful design tool as a system simulation software when
combined with
3D Passage/Flow
|
Related Software
|
|
|
|
PASSAGE®/Sysflow 1D system flow analysis
software was developed and is offered
exclusively by Technalysis, Inc.
|
| |
